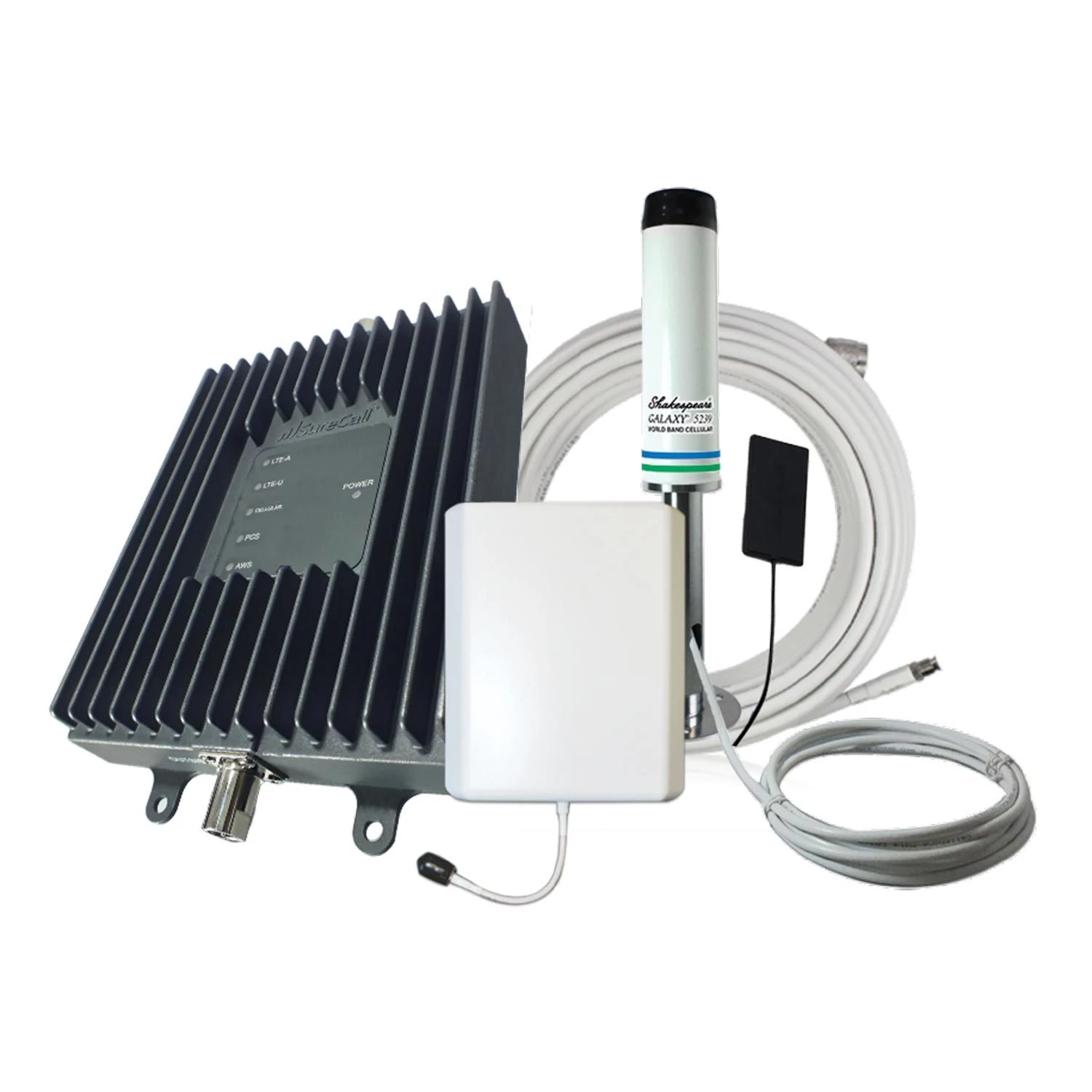

SHAKESPEARE Cellular Antennas SuperHalo 2G/3G/4G Cellular Booster

Five-band cellphone signal booster is a cost-effective all-in-one cellphone reception solution for mid-large range vessels, medium-size homes or businesses.

The Super HALO is a marine grade 2G, 3G and 4G voice and data cellular reception solution. Its five-band compatibility makes it compatible with AT&T, T-Mobile and Verizon networks. The Super HALO is optimized to boost cellular reception for your boat, car, recreational vehicle, home or anyWhere else, with support of 10+ users simultaneously and an indoor antenna to direct the signal where you really need it.

Automatic shutdown and uplink/downlink oscillation detection are standard features on this booster. Full-featured and extremely competitively priced, it requires one-fifth the installation space of many competitors at a fraction of the cost. This booster is ideal for locations with a low cellular data and voice signal, and will cover up to 10,000 square feet while providing up to ten simultaneous users with crystal-clear calls and high-speed data.

Key Features

• Five band: Works with AT&T, T-Mobile and Verizon 2G, 3G, and 4G networks
• Stealth technology: Uplink becomes dormant while not in use to save power
• Automatic gain control (AGC): Does not overpower or interfere the cell sites
• Automatic shutdown: Energy efficient and does not interfere with the cell sites
• Manually adjustable gain: Flexibility in antenna placement and fine-tuning the system
• High quality metal construction: Durable and resilient
• FCC certified: Safe and legal
• Broad Support: Supports all 2G – 4G standards and all carrier frequencies (Except WiMax and iDen)

Specifications

• Frequency-Uplink (Downlink) MHz: 698-716 (728-746) / 776-787 (746-757) / 824-849 (869-894) / 1850-1915 (1930-1995) / 1710-1755 (2110-2155)
• Input / Output Impedance: 50ohm
• Maximum Gain: 50dB
• VSWR: ≤ 2.0
• Standards Supported: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
• Throughput: 100+ Mbps
• Noise Figure: 5dB
• Connectors: FME Male (both ends)
• Power Supply / Consumption: 5-15VDC, 2.1A Max. @ 12 VDC
• Dimensions: 7 7/8″ x 5″ x 1 3/16″
• Weight: 2lb 3oz
• RoHS Compliant: Yes
• FCC ID (USA): RSNMOBILE5

What’s in the Box

• WRAITH-5 cell phone amplifier
• 5dB attenuator
• 10dB attenuator
• AC power supply
• user manual
• mounting kit
