ANCOR Antenna & Coaxial Accessories Marine-Grade Coax Cable (Bulk)

Original price was: $0.89.Current price is: $0.70.

SKU: P003_094_003_002 Categories: Antenna & coaxial accessories, Electronics & navigation, Marine communication Tag: ANCOR

Enjoy top quality items for less
Free Shipping, No Compromise on Quality
Your Security is Our Promise
Control the delivery date and try to deliver it in the fastest time

Premium-quality coaxial cable has 96% braid for best signal strength and least interference.

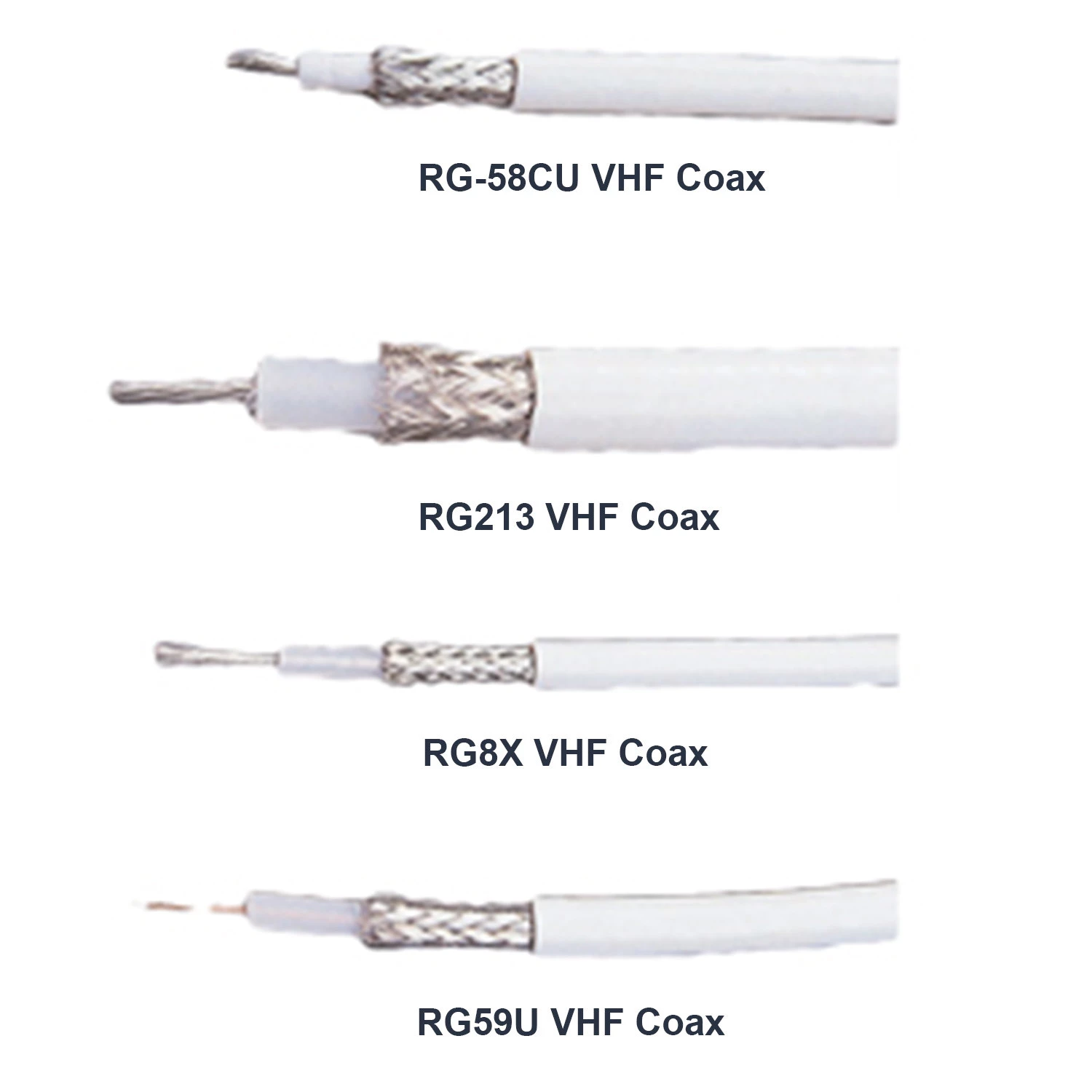

Tinned copper wire is used for the conductor and shield, insulated by a UV-inhibited white jacket. Use RG-58CU for interconnecting electronic equipment, RG-59U for TVs and some SAT NAVs, RG-8X for VHF runs less than 50′ and RG-213 for VHF runs over 50′. Price is per foot.

Features signal loss ratios of up to 50 percent less than other brands of coaxial cable
Tinned copper center conductor as well as tinned copper outer braid for corrosion resistance and easy soldering
96 percent braid for best signal strength and least interference, with UV inhibited white jacket for longest life

Specifications

Wire Type	RG58C/U	RG59U	RG8X	RG213
Insulation Material	PVC*	PVC	PVC	PVC*
Nominal O.D.	3/16″ 4.8mm	1/4″ 6.4mm	1/4″ 6.4mm	13/32″ 10.3mm
AWG	20	23	16	13
Conductor Stranding	19/33	Solid**	19/29	7/21
Braid Coverage	96%	96%	96%	96%
Weight per 1000′	26lb.	36b.	40b.	110b.
Impedance (Ohms)	50	75	50	50
Capacitance/Ft.	30.8 pF	20.5 pF	26.0 pF	30.8 pF
Attenuation/100′
@50MHz	3.3dB	2.4dB	2.5dB	1.3dB
@100MHz	4.9dB	3.4dB	3.7dB	1.9dB
@1000MHz	21.5dB	12.0dB	13.5dB	8.0dB
Velocity of Propagation	66%	66%	78%	66%
* Non-contaminating insulation	** Copperweld
